FV-500 Four Eccentric Pile Driver | High-Flow Merging Valve Unit Manufacturers China & Custom Low Maintenance Cost Design for 48–52 Ton Excavators

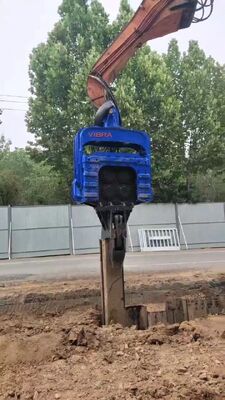

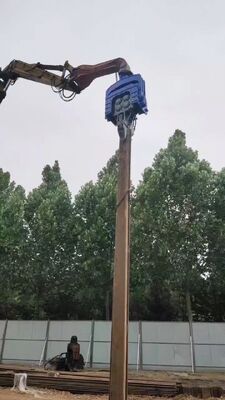

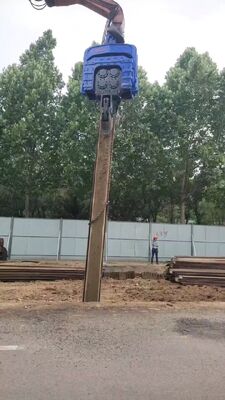

The FV-500 Four Eccentric Pile Driver represents a breakthrough in large-scale foundation construction technology, engineered specifically for 48–52 ton excavators to handle demanding piling projects across Southeast Asia, India, and Russia. As the demand for larger steel sheet piles, steel casings, and PC hybrid piles continues to grow across global infrastructure markets, traditional pile driving equipment often falls short in power, stability, and efficiency. The FV-500 is designed to meet these challenges head-on, delivering the muscle needed to drive piles up to 18 meters in length for deep foundations, port construction, bridge engineering, and heavy industrial developments.

As a flagship product from leading High Frequency Vibration Output Manufacturers China, the FV-500 combines advanced vibratory technology with rugged construction to penetrate the most challenging ground conditions—from Southeast Asia's waterlogged soft soils and tropical clay to India's diverse terrain and Russia's frozen permafrost.

The Four Eccentric Mechanism System Suppliers China have perfected the vibratory technology that powers the FV-500. Unlike traditional two-eccentric designs that generate significant lateral forces, the four-eccentric mechanism utilizes four synchronized eccentric shafts rotating in opposite directions. This design achieves:

• Greater Centrifugal Force: Delivers up to 759 kN of exciting force, enabling penetration through dense soils and challenging geological conditions.

• Enhanced Stability: Balanced force distribution minimizes lateral vibration, reducing stress on the excavator and improving operator comfort.

• Higher Efficiency: More effective energy transfer from the hammer to the pile means faster driving cycles and reduced fuel consumption.

Horizontal forces cancel out while vertical forces sum up, producing maximum impact with minimal lateral movement. This ensures piles are driven straight and true, significantly reducing rejection rates and material waste.

The FV-500 delivers High Frequency Vibration Output China at 2800 rpm, combined with a centrifugal force of 759 kN and an eccentric moment of 8.8 kgm. This high-frequency vibration rapidly liquefies surrounding soil, dramatically reducing friction and enabling penetration 30–40% faster than standard hammers.

The vibration frequency of 2800 rpm generates deep soil liquefaction in an instant, with effective force exceeding 20–45 tons. This performance is particularly valuable for:

• Southeast Asia: Penetrating waterlogged soft soils and tropical clay where conventional hammers struggle.

• India: Handling diverse soil conditions from the loamy soils of the Gangetic plains to compacted urban construction sites.

• Russia: Overcoming frozen ground and permafrost where extreme cold reduces equipment efficiency.

The FV-500 is equipped with an advanced High-Flow Merging Valve Unit Manufacturers China component that represents a significant advancement in hydraulic control technology. This large-flow combining valve can increase hydraulic flow to 700 L/min (standard operation flow: 320 L/min), ensuring ample power delivery even during the most demanding operations.

Key benefits of the high-flow merging valve unit include:

• On-Demand Power: When encountering unexpected hard layers or challenging ground conditions, the merging valve instantly boosts hydraulic flow to overcome resistance.

• Enhanced Piping System: Body piping is enlarged to 1½ inches, reducing pressure loss and improving system efficiency.

• Component Protection: Smart electronic controls extend the lifespan of valves, hoses, and seals by preventing pressure spikes and overheating.

The new-generation electronic control system optimizes performance and protects critical components, ensuring consistent reliability across extended work cycles.

The Custom Low Maintenance Cost Design philosophy is embedded throughout the FV-500, making it an ideal choice for contractors who prioritize total cost of ownership. Several features contribute to reduced maintenance requirements and extended service life:

Self-Lubricating Bearing System: An integrated lubrication circuit continuously supplies oil to all bearings during operation, eliminating the need for daily greasing of hard-to-reach points. This dramatically extends bearing life and ensures core stability even under extreme loads—particularly valuable for remote job sites with limited maintenance facilities.

Super-Strong Structural Components: The frame and connecting elements feature enlarged connecting shafts to ensure balanced force distribution and eliminate weak points. Engineering analysis ensures vibration energy is directed efficiently into the pile, not wasted on structural flexing.

Premium Componentry: Original imported Parker hydraulic motors and German FAG bearings provide world-class reliability. The super-strong cast steel clamp, matched with 160–180 oil cylinders, delivers a maximum clamping force of 650 kN for stable and reliable grip on all pile types.

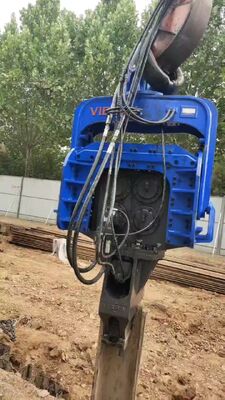

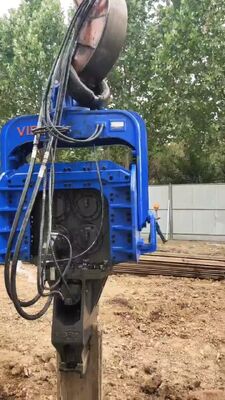

Super-Strong Cast Steel Clamp: The clamp is engineered for extreme durability, ensuring stable and reliable gripping of steel sheet piles, steel casings, and PC piles throughout the driving and extraction process.

The FV-500 excels in Southeast Asia's challenging conditions—waterlogged soft soils, tropical clay, and compacted ground. The high-frequency vibration output rapidly liquefies soil, enabling efficient pile penetration even in saturated conditions. Applications include port construction, bridge foundations, high-rise building foundations, and retaining walls across Vietnam, Indonesia, Thailand, and the Philippines.

India's rapidly growing infrastructure sector demands reliable, high-performance piling equipment. The FV-500 handles diverse soil conditions—from the loamy soils of the Gangetic plains to the rocky terrain of the Deccan Plateau. Its robust construction and low maintenance requirements make it ideal for India's large-scale infrastructure projects, including highways, bridges, metro systems, and industrial developments.

The FV-500 is engineered to perform in Russia's extreme cold environments and frozen ground conditions. The self-lubricating bearing system ensures reliable operation even in sub-zero temperatures, while the powerful vibration output penetrates permafrost and glacial till. The machine is well-suited for infrastructure projects across Siberia and the Russian Far East.

Q1: What excavator size is compatible with the FV-500 Four Eccentric Pile Driver?

The FV-500 is designed for 48–52 ton excavators. This compatibility range makes it suitable for a wide variety of large-scale piling projects across Southeast Asia, India, and Russia.

Q2: How does the high-flow merging valve unit improve machine performance?

The high-flow merging valve unit can increase hydraulic flow to 700 L/min, providing on-demand power when encountering unexpected hard layers or challenging ground conditions. This ensures optimal power delivery across varying ground conditions while protecting critical components from pressure spikes.

Q3: What is the maximum pile length the FV-500 can handle?

The FV-500 can drive and extract piles up to 18 meters in length. For longer piles, the FV series offers larger models handling up to 32 meters.

Q4: How does the self-lubricating bearing system reduce maintenance costs?

The built-in lubrication circuit continuously supplies oil to all bearings during operation, eliminating daily greasing of hard-to-reach points. This extends bearing life significantly, reduces maintenance downtime, and ensures core stability under extreme loads—particularly valuable for remote job sites with limited maintenance facilities.

Q5: Is the FV-500 suitable for frozen ground conditions in Russia?

Yes. The FV-500 is specifically engineered to perform in extreme cold environments. The self-lubricating system ensures reliable operation even in sub-zero temperatures, while the powerful 759 kN centrifugal force penetrates permafrost and glacial till effectively.

Q6: What after-sales support is available for international customers?

As a product from leading High Frequency Vibration Output Manufacturers China, the FV-500 comes with comprehensive after-sales support, including technical documentation, spare parts availability, and remote technical assistance. The VIBRA brand has established distribution networks serving Southeast Asia, India, and Russia.

Q7: What is the delivery time and minimum order quantity?

Standard delivery time is 7–30 days, with a minimum order quantity of just 1 set—making it accessible for both large contractors and smaller-scale developers.
